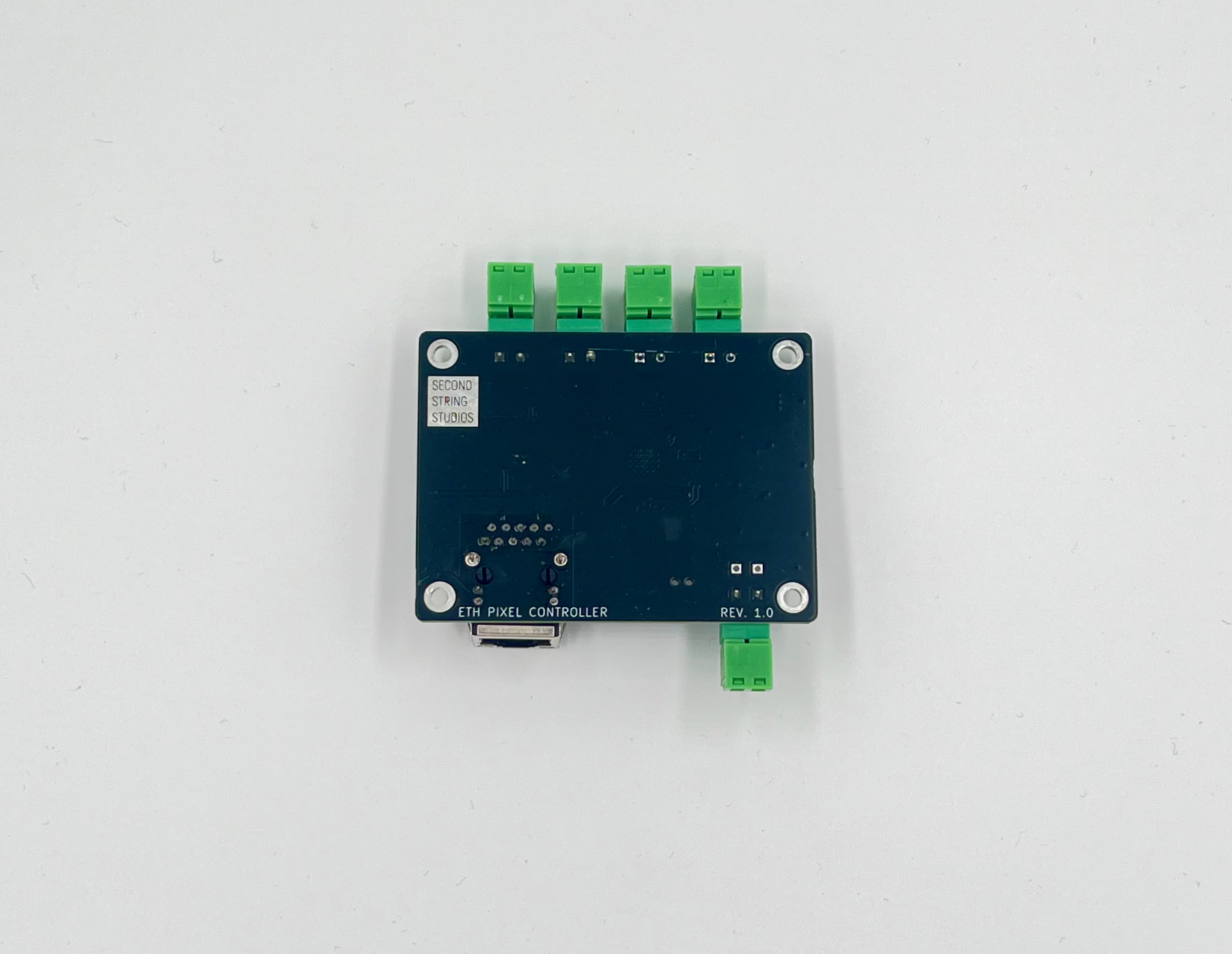

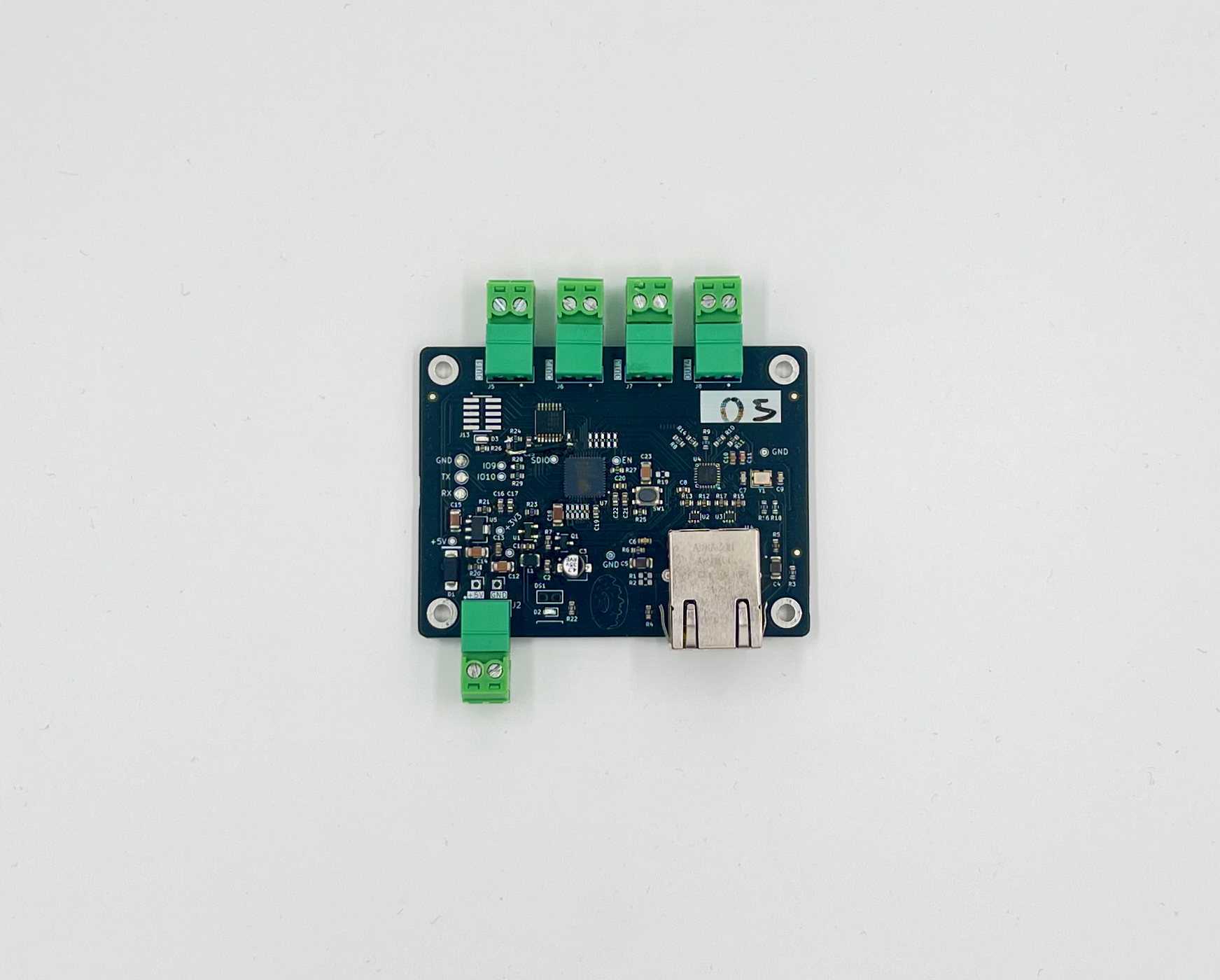

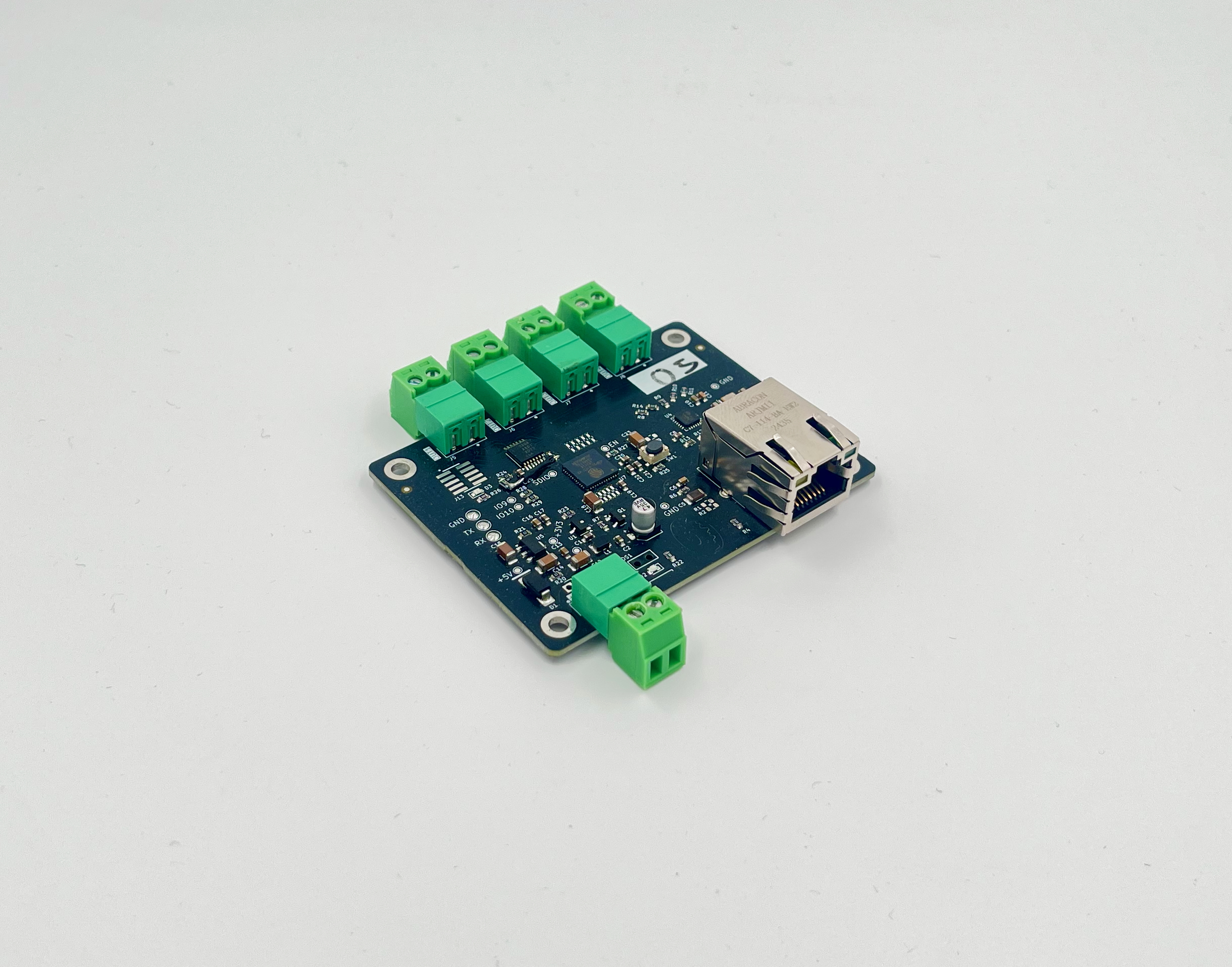

Ethernet Pixel Controller

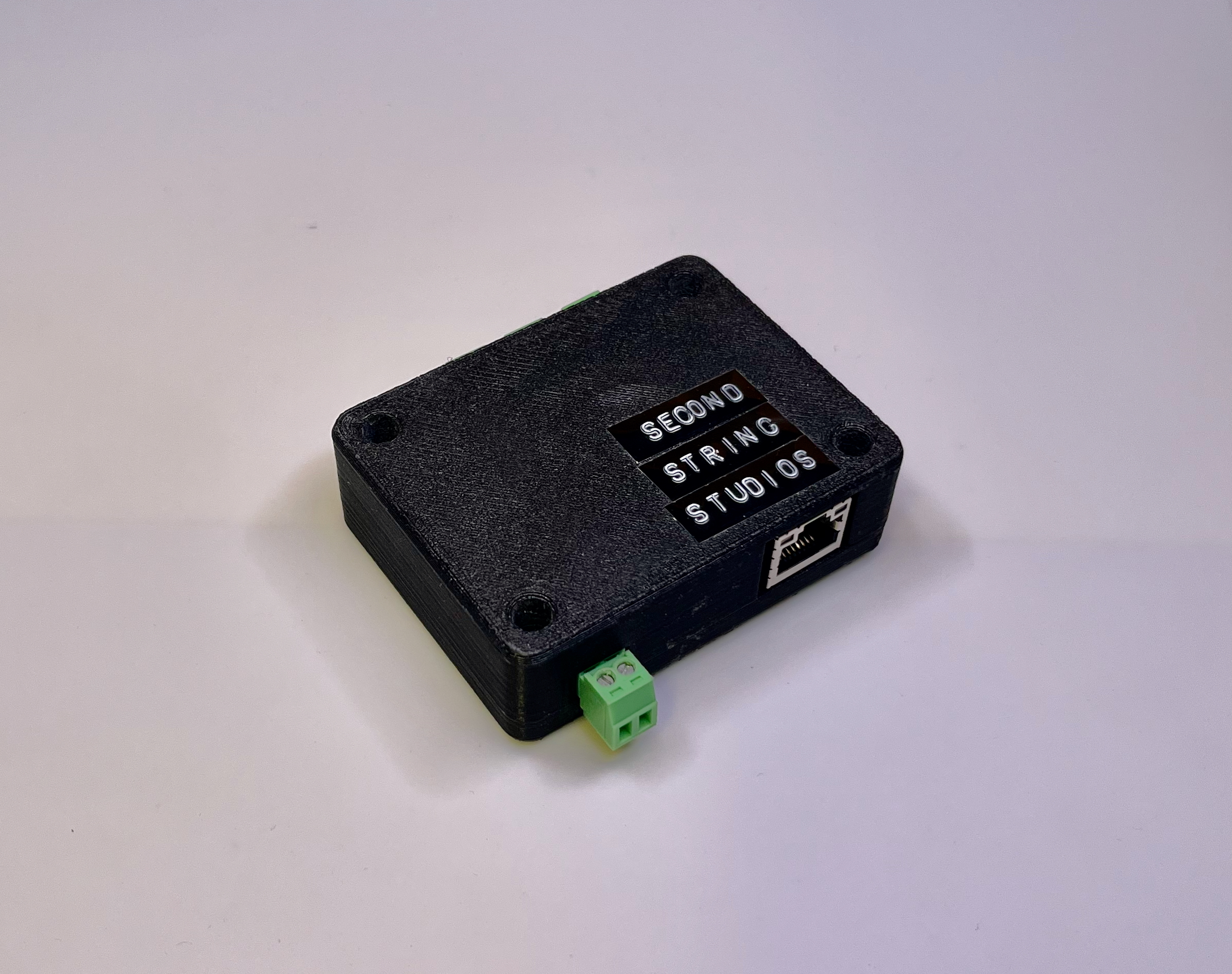

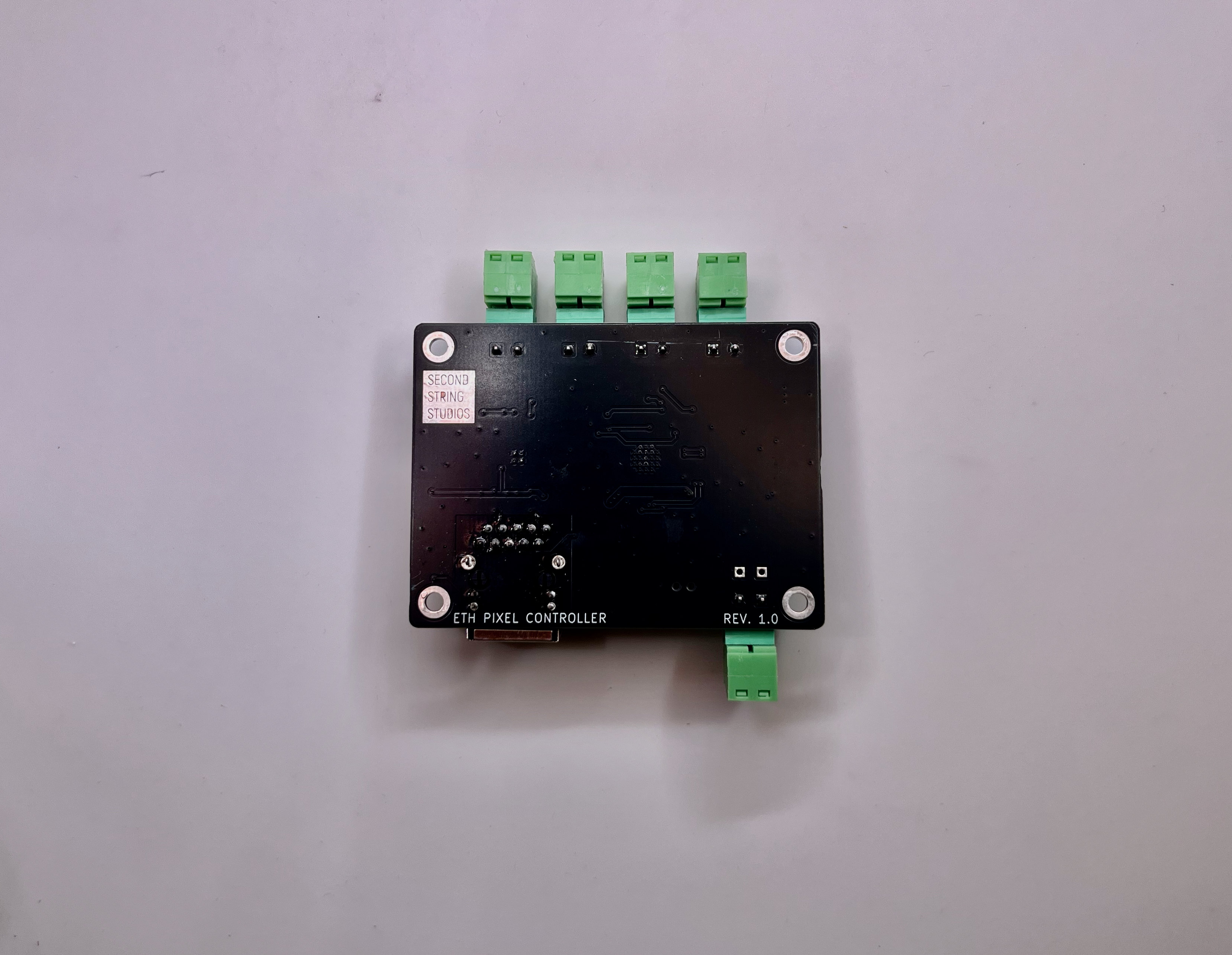

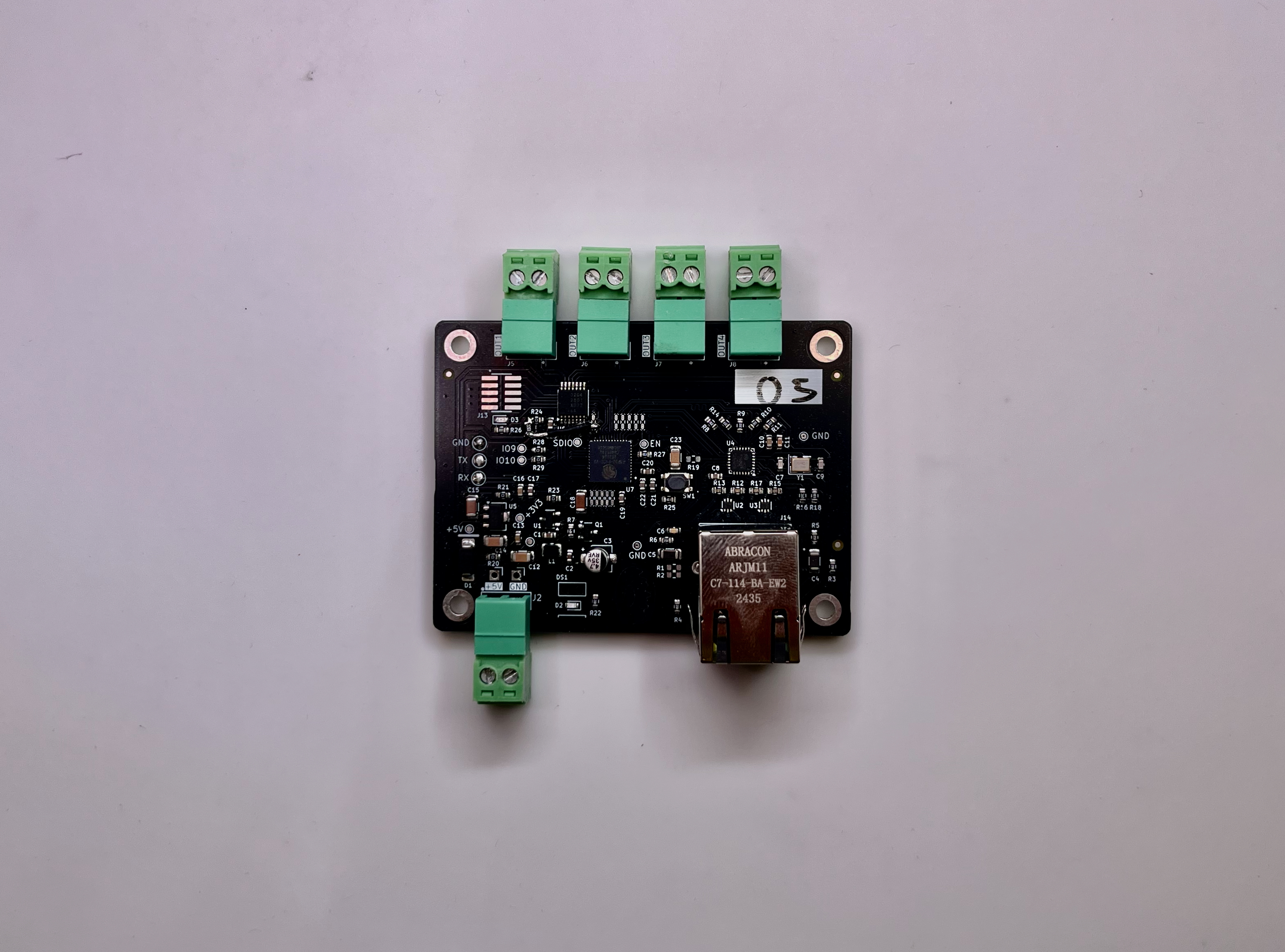

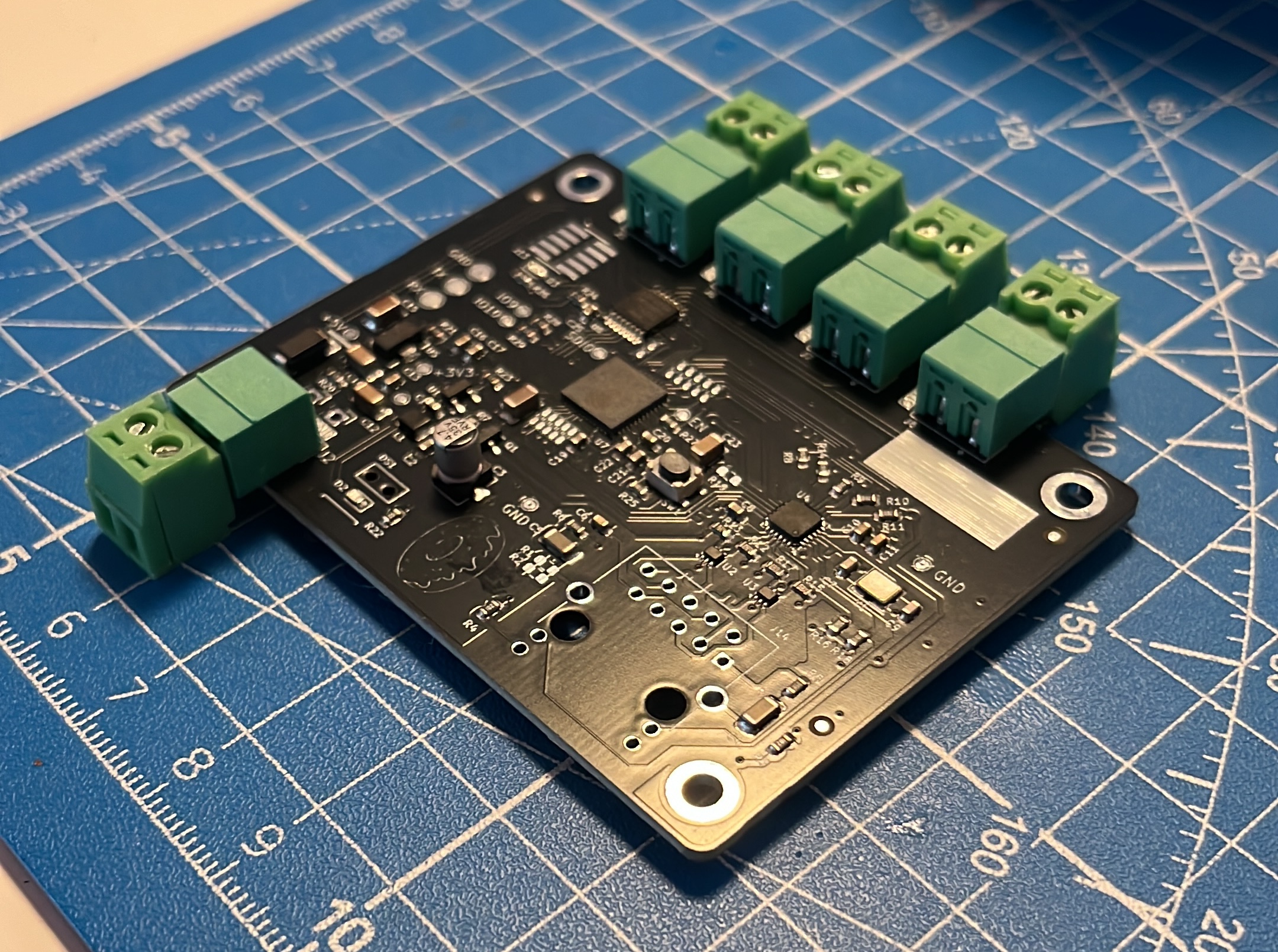

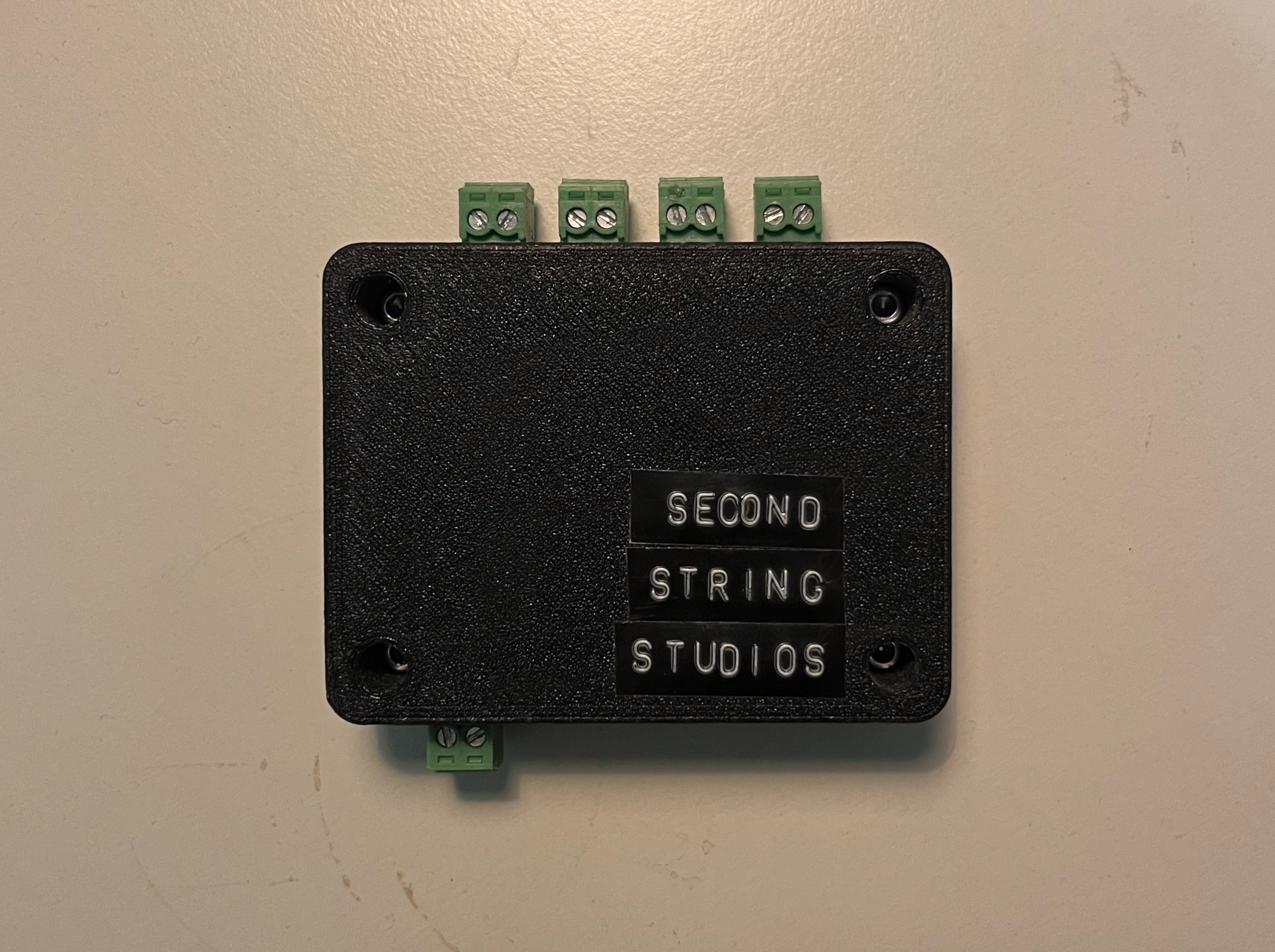

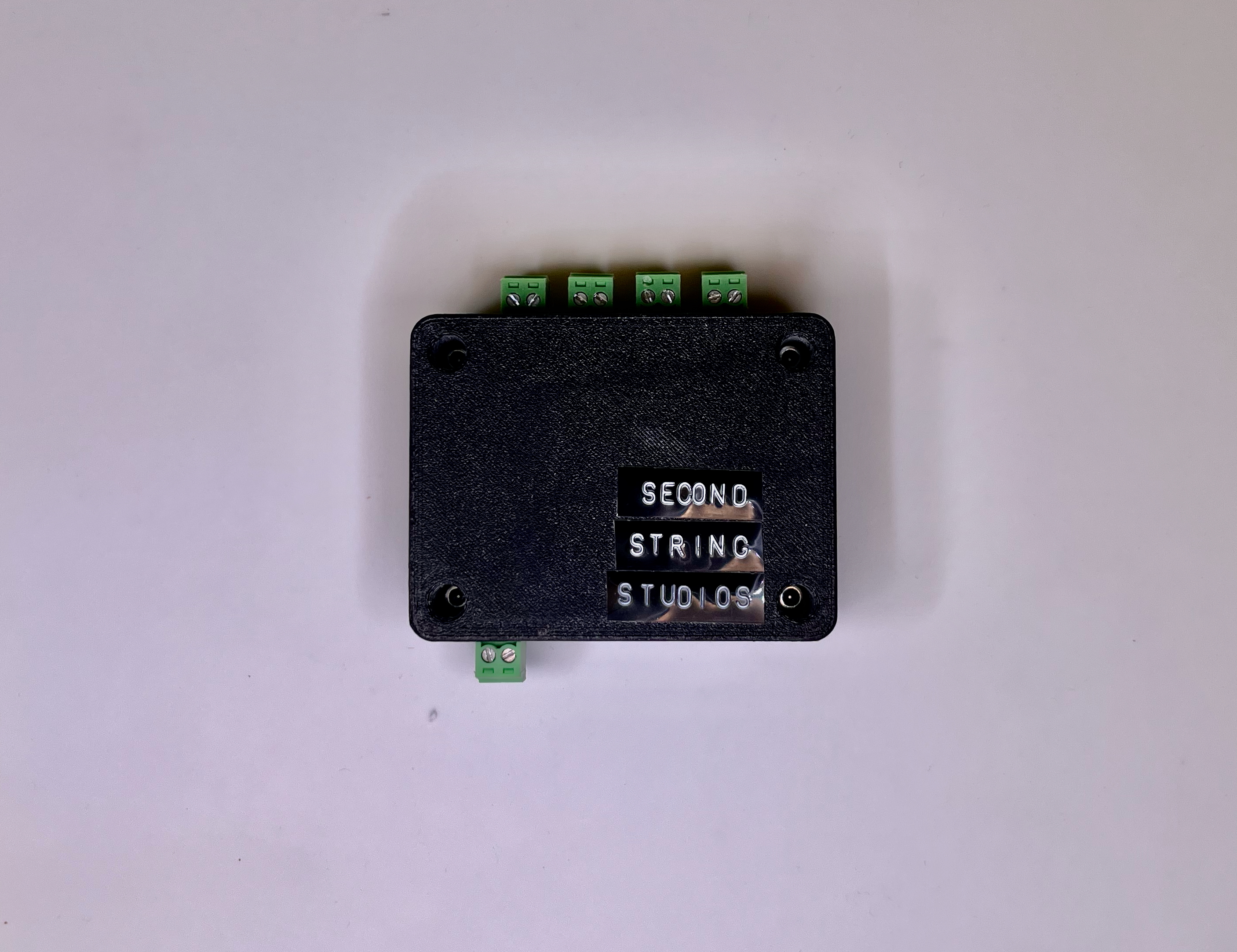

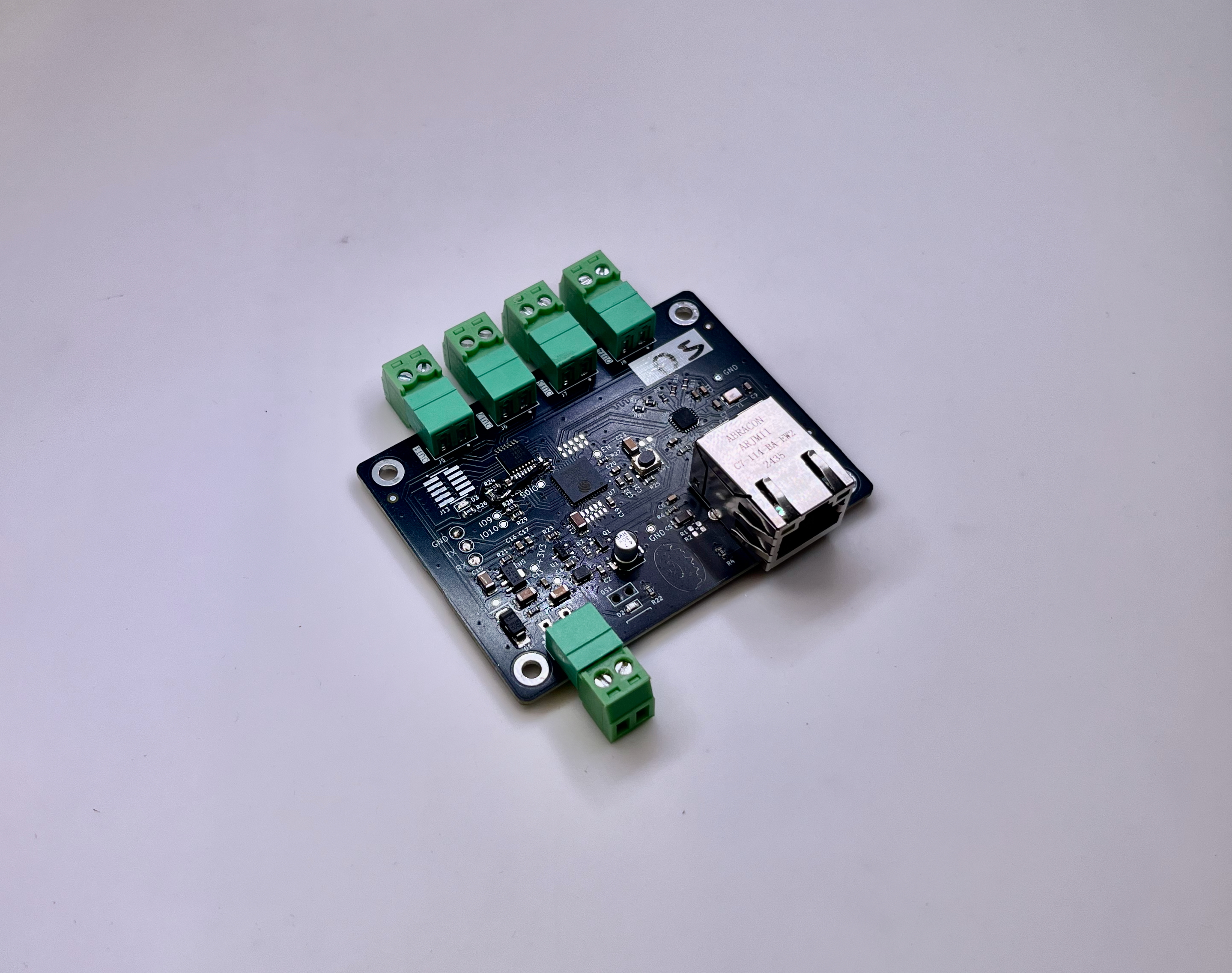

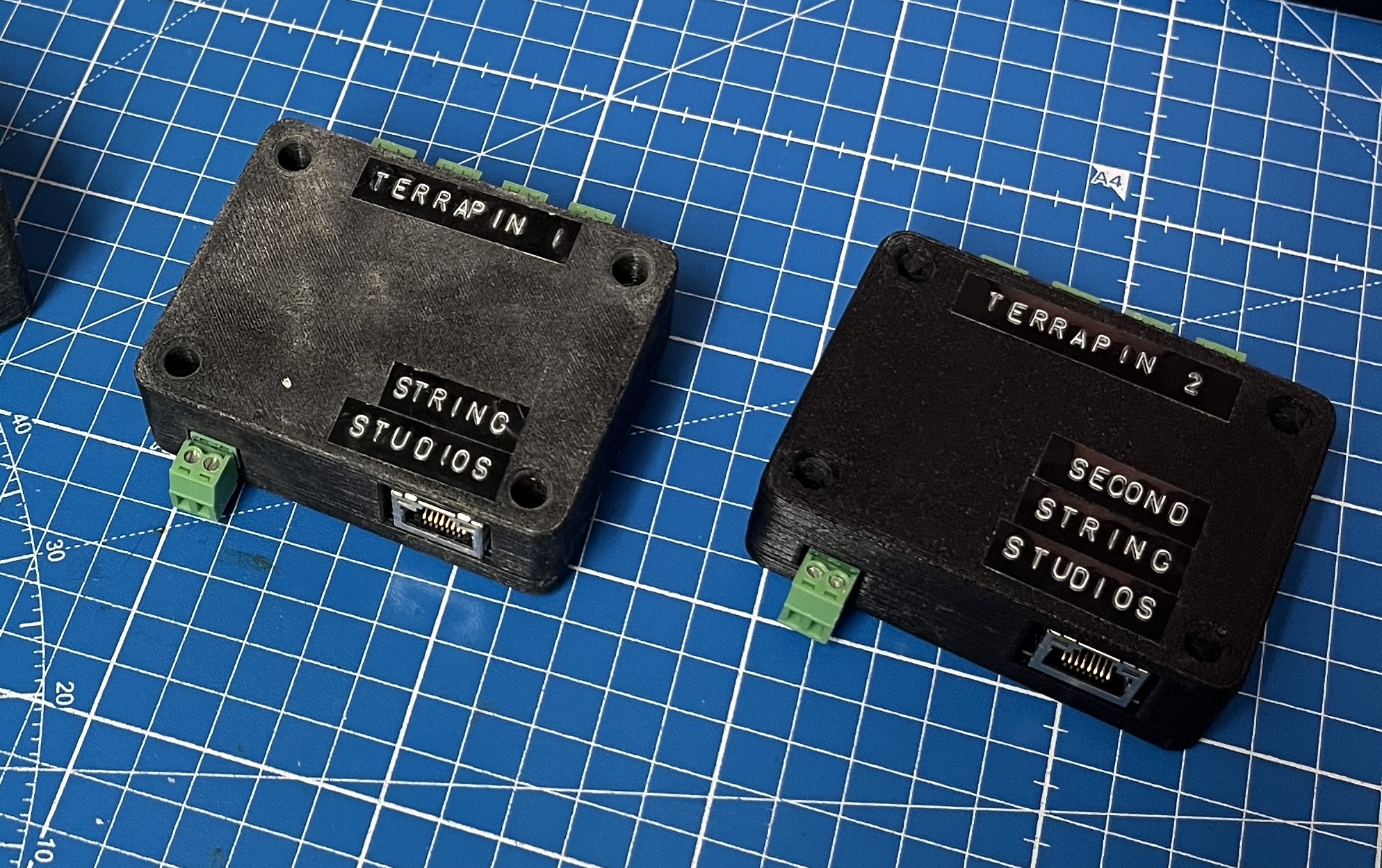

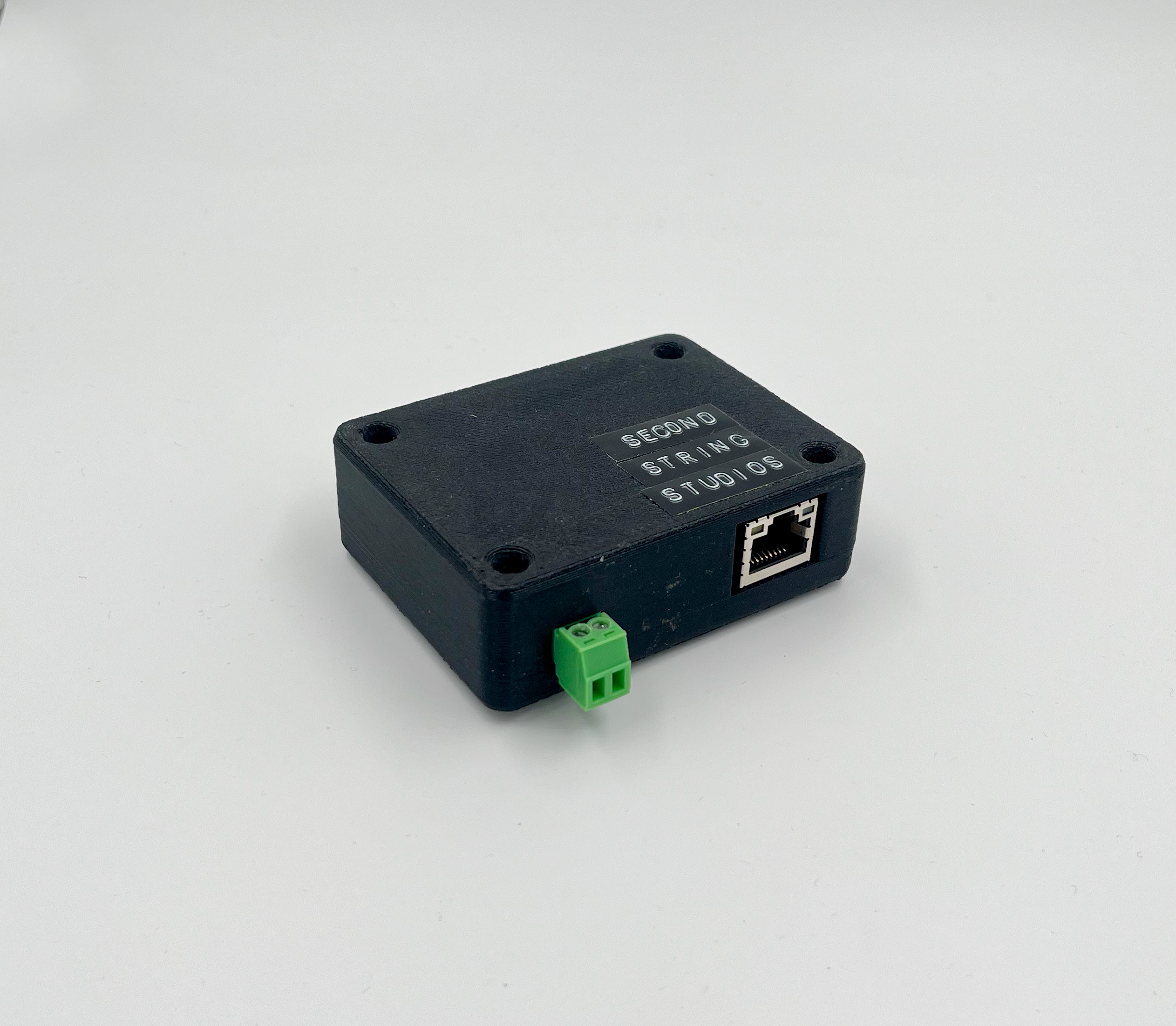

2025 Up to four individual strips, WLED or direct Art-Net/sACN controlThe Ethernet Pixel Controller is designed to work as a standalone driver or be built-in to a larger installation.
It supports four individual asynchronous addressable LED outputs (see bottom for list of supported protocols). Synchronous protocols that require a clock and data line take up two output ports for each pixel output.
Each pixel output is buffered and level shifted to 5V for flicker-free operation. All inputs and outputs to the device are protected from ESD and voltage transients.
The controller runs a custom version of the popular WLED open-source firmware tailored specifically to the hardware to enable direct control, including built-in patterns, out of the box. For those that require more customization and have PC-based content, the LED outputs can also be controlled directly through Art-Net or sACN.
Supported LED output protocols
- SK6812
- WS2811
- WS2812B
- UCS8903
- GS8208
- TM1814
- WS2805
- WS2811
- WS2814
- WS2815
- FW1906
- LPD6803
- P9813
- TM1829
- UCS8904
- WS2813 (requires 2 outputs)
- APA102 (requires 2 outputs)
- LPD8806 (requires 2 outputs)
- WS2801 (requires 2 outputs)
- SK9822 (requires 2 outputs)
